| Modle: |
COMPTON-Stretch Mesh Ceiling System |
|
|
|
|
| description: |

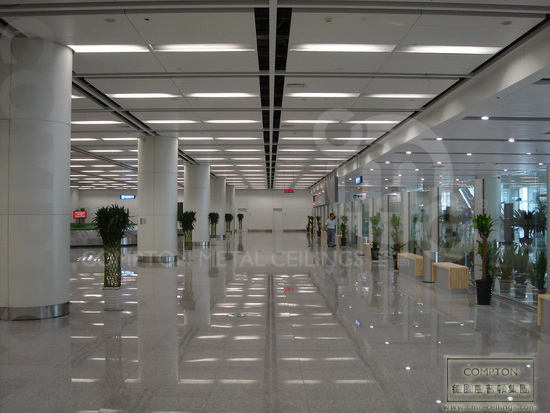

Metal Spreading Network ceiling system featuring open and transparent is the best choice for modern office building, airport, stations and shopping mall. To create a stable, clean and modern ceiling effect, either concealed or bare frame could be used in the system which is more suitable for large space.
Suspended system could use concealed frame: upper layer zincification frame connected to lower layer J frame to form a cross frame, wire netting hole ceiling directly hung to J frame; or use bare frame suspend system: wire netting hole ceiling directly hung to highlight ceiling wire. The mature design system doesn’t need to any other tools and save time in installing.
Interchanging ceiling design: simple, complete and pretty, mesh ceiling with good sound-absorbing efficiency; perfect fitting air condition function of air supply and air return; convenient to be dismantle; specially applicable for lighting and draft apparatus; heat preservation cotton inside mesh ceiling to promote sound-absorbing efficiency.
|
| Main Keel: |
29mm高，29mm寬，2.0mm厚，龍骨兩邊側有不同模數的沖孔，方便安裝及調節，材質為熱鍍鋅鋼板製成。 |
| Ancillary Keel: |
20mm x 50mm x16mm x 8mm，厚度為：1.2~2.0mm，材質為熱鍍鋅鋼板製成。 |
| Panel: |
板材建議寬度為600mm，長度小於2000mm，材質為3003鋁合金或熱鍍鋅鋼板制成，表面處理為粉沫噴塗。網格規格形式可根據客戶要求定制。 |
| Color: |
顏色選擇可參考至高提供的色卡。 |
| Suspension rod system: |
Φ6mm或Φ8mm螺桿。 |
| Integrated system: |
建議將照明燈具及空調設備配合,使之成為天花系統的組成部分。 |
| Minimum clearance: |
300mm |
| Interval of keel: |
中間1000mm ，靠牆間距500mm |
| Interval of the suspension rod: |
1000mmx1200mm |
|
|
|
