| Modle: |
COMPTON-C-shape strip system |
|
|
|
|
| description: |
200C strip by the board 0.7mm thick enamel BAKING made of aluminum alloy, the width of 200mm, there are beveled on both sides of the plate surface design, punching the back of the plate with high sound-absorbing Soundtex non-woven paper, the length of the board by 1200 ~ 5800 (mm ), 15mm at both ends of the folded edge up.
Neat appearance of unity, a solid structure, without any special tools, can be easily removable to facilitate maintenance of other equipment on the ceiling.

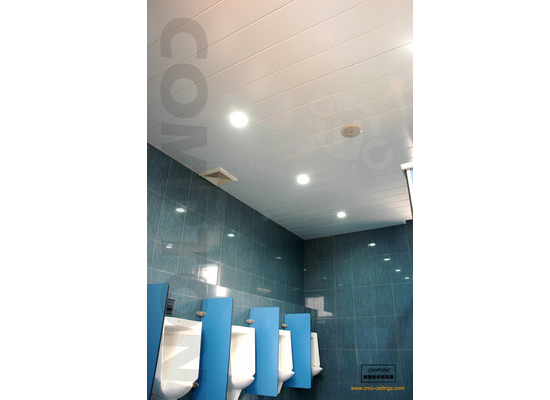

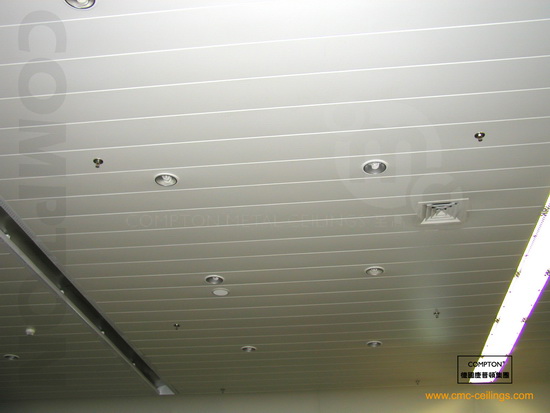

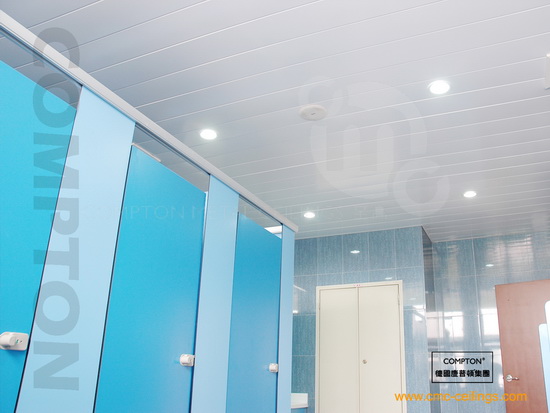

The main products applicable to the subway, airport, railway stations, modern large-scale shopping malls, access, open office area, bathroom, and other places. |
| Keel: |
40mm high, 28mm wide, 0.7mm thick, black coating material for aluminum alloy made module (pitch) 200mm. |
| Panel: |
Sheet metal thickness of 0.7mm, height of 15mm, width of 200, according to the needs of custom length (up to 5800mm). material for aluminum baking 3003 (pre-coated roll) made. Spray the surface with powder or PVDF (CFCs) |
| Color: |
The color can be chosen with reference to the color swatch cards Compton offers. |
| Suspension rod system: |
φ 6mm or φ 8mm screw rod. |
| Perforation: |
perforation or plain tile is available; |
| Integrated system: |
1. Suggested that the lighting and air-conditioning equipment installed in the ceiling the same plane. 2. Separate proposal to install lighting equipment on the ceiling or the side to do the following indirect lighting |
| Minimum clearance: |
250mm |
| Interval of the suspension rod: |
1200mm x 1200mm |
|
|
|
